Advanced Sheet Metal Cutting: A Comprehensive Guide

Sheet metal cutting has come a long way from manual tools and basic shears. Today, industries rely on advanced cutting methods to meet the growing demand for speed, accuracy, and complex shapes. These modern techniques include laser cutting, waterjet cutting, plasma cutting, and CNC-controlled systems. They allow manufacturers to produce high-quality parts with tight tolerances and minimal material waste.

Advanced sheet metal cutting is more than just slicing metal—it’s about precision engineering. It supports everything from intricate electronics to heavy-duty machinery. The choice of cutting method depends on factors like material type, thickness, part design, and production volume. As technology improves, these cutting processes continue to evolve, offering faster production, better surface finishes, and greater flexibility in design.

This article breaks down the most common advanced cutting methods, their strengths, and where they work best. Whether you’re building lightweight automotive parts or custom enclosures, understanding these techniques helps you choose the right solution for your project

Advanced Sheet Metal Cutting

Advanced sheet metal cutting refers to the use of modern, high-tech methods to cut metal sheets with greater speed, accuracy, and efficiency than traditional techniques.  If you’re looking for how to cut sheet metal with precision, these advanced methods are your best option. Instead of using manual tools like snips or mechanical shears, today’s cutting processes often rely on automated machines that use laser beams, plasma arcs, or high-pressure waterjets. These machines are guided by computer software (CNC systems), allowing them to follow precise patterns and create detailed, repeatable cuts.

These advanced methods can handle a wide range of materials, including steel, aluminum, brass, copper, and even heat-sensitive alloys. They also work well for both thin and thick sheets, making them useful across many industries like aerospace, automotive, medical devices, and electronics.

What makes these cutting techniques “advanced” is their ability to produce clean edges, tight tolerances, and complex shapes—all while reducing material waste and speeding up production. They also minimize the need for extra finishing steps, saving both time and cost.

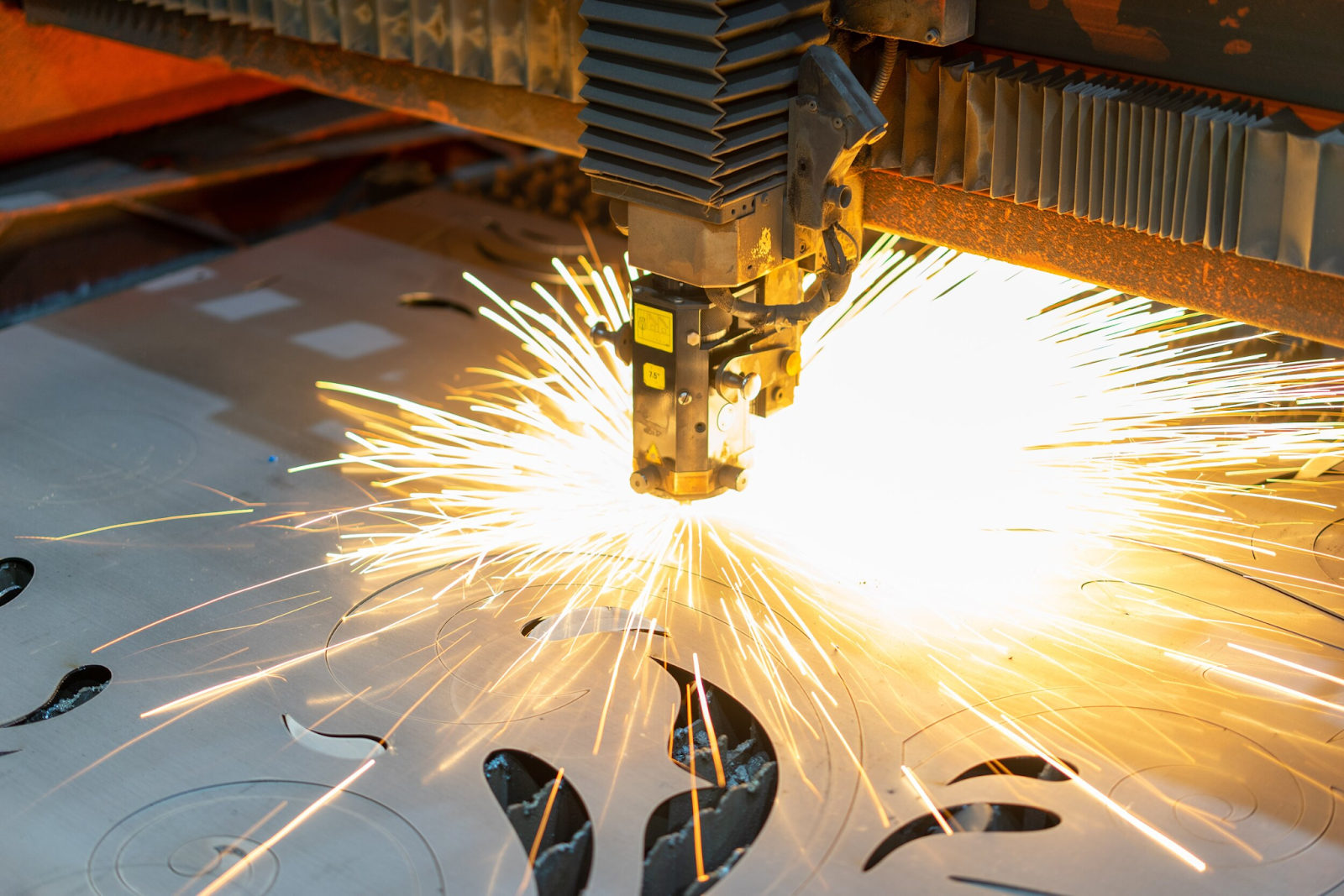

Precision Laser Cutting in Sheet Metal Fabrication

Laser cutting is one of the most advanced and reliable methods for cutting sheet metal. It uses a focused beam of light to melt, burn, or vaporize material with incredible accuracy. This process is fully automated with CNC controls, which ensures consistent results—even for complex shapes and tight tolerances.

In fabrication, precision laser cutting stands out because of its speed, minimal heat-affected zone, and clean edges. It works well with a variety of metals like steel, aluminum, brass, and stainless steel. Since it doesn’t involve physical contact, there’s less tool wear and reduced risk of material distortion.

This cutting method is perfect for high-volume production as well as detailed custom work. Whether for decorative panels, machine components, or structural parts, laser cutting gives fabricators the flexibility and control needed to meet strict design demands.

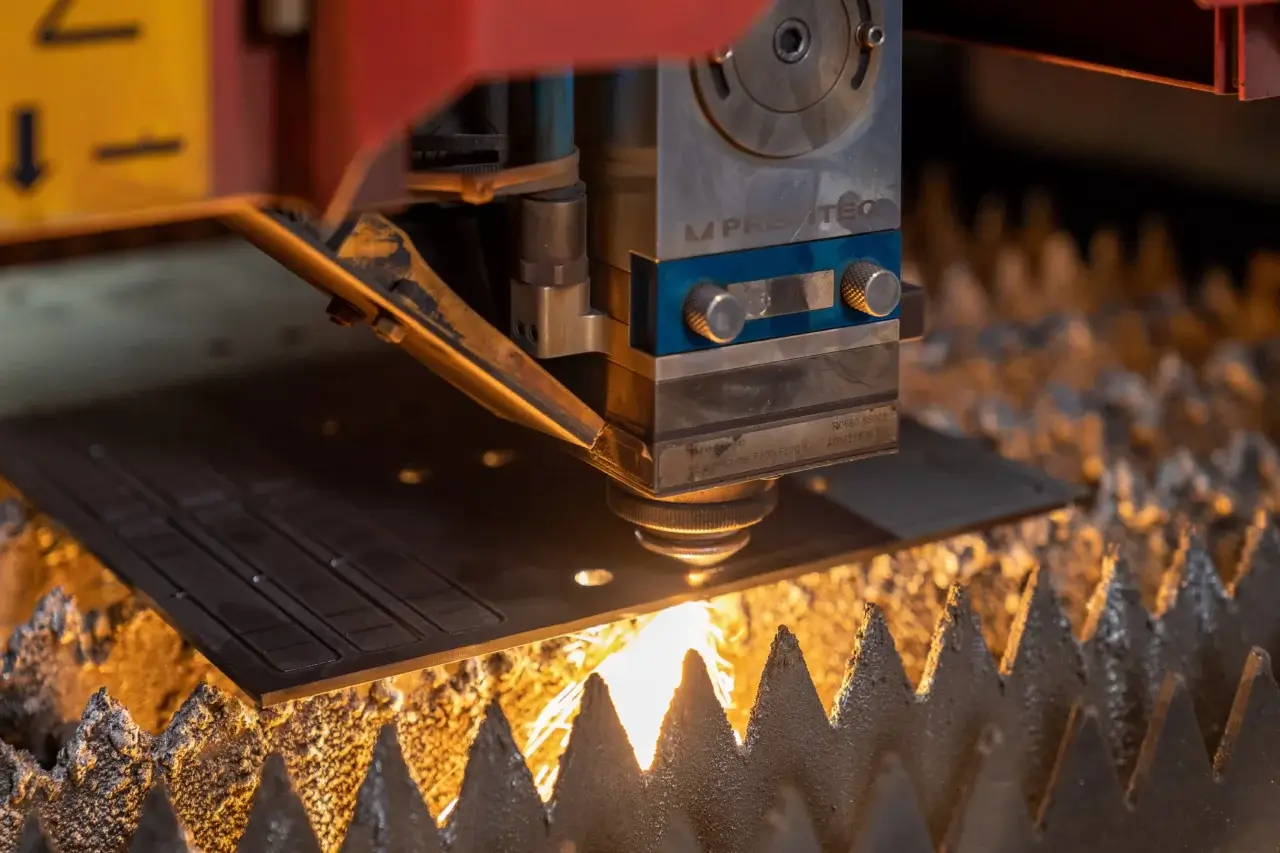

How Laser Cutting Works

Laser cutting works by focusing a high-energy beam of light onto the surface of a metal sheet. This beam is powerful enough to melt, burn, or vaporize the material at the exact point it touches. The focused light is generated by a laser source—either a CO₂ laser or a fiber laser—then guided through a series of mirrors and lenses that concentrate it into a tiny, precise spot.

Once focused, the laser beam moves along a predefined path based on a digital file, usually a CAD drawing. This path is controlled by a CNC (Computer Numerical Control) system, which ensures high precision and repeatability. The cutting head doesn’t touch the metal. Instead, it hovers just above the surface, allowing the beam to do all the work without friction or pressure.

As the laser cuts, an assist gas—typically nitrogen, oxygen, or compressed air—is blown into the cutting zone. This gas helps remove molten material, prevent oxidation, and improve cut quality. The choice of gas depends on the material and the type of edge finish required.

Laser cutting is especially effective for metals like stainless steel, carbon steel, aluminum, and brass. It can handle everything from intricate engraving to full part separation. Because it’s a non-contact method, there’s minimal tool wear, and the cut remains sharp and consistent throughout the job.

Advantages of Precision Laser Cutting

Here are the advantages of precision laser cutting:

• Exceptional Cutting Accuracy

Laser cutting provides extremely precise results, thanks to the use of a focused, high-energy beam that follows CNC-programmed paths. It consistently holds tolerances as tight as ±0.1 mm or better, even on intricate or highly detailed designs. This makes it ideal for applications that demand exact fits and clean finishes, such as medical components, aerospace parts, electronics, and fine architectural panels. With no tool drift or mechanical pressure involved, the cut remains accurate from start to finish, even across large production runs.

• Clean and Burr-Free Edges

Traditional cutting methods like shearing or mechanical sawing often leave rough or burred edges that need extra processing. In contrast, laser cutting produces clean, smooth edges with little to no post-processing required. The heat of the laser beam instantly melts and vaporizes material in a focused line, which prevents jagged edges or dross buildup. For most metals—especially stainless steel and aluminum—the result is a crisp, polished edge that’s ready for assembly, welding, or coating without additional finishing.

• Low Heat Distortion

Laser cutters apply heat only where it’s needed, and they do it quickly. Because of this, the surrounding material stays relatively cool, reducing the risk of thermal warping or weakening. The heat-affected zone (HAZ) remains small and well-controlled, which helps maintain the metal’s mechanical properties. This is a major advantage when working with thin sheets or parts that require precise flatness. Low distortion also means better fit and finish in final assemblies.

• Efficient Material Use

Laser cutting allows for tighter nesting of parts on a single sheet, thanks to the precision of its narrow kerf width. This efficient use of space reduces scrap and maximizes the yield from every metal sheet. With advanced CAD/CAM software, you can optimize layouts and minimize material waste automatically. This lowers your overall production costs, especially when working with expensive materials like stainless steel, titanium, or copper alloys.

• Fast and Flexible Production

Speed and adaptability are major strengths of laser cutting. For thin to medium-thickness metals, lasers cut quickly—often much faster than plasma or mechanical methods. Since laser systems are CNC-driven, switching between jobs is as simple as uploading a new design file. There’s no need for physical tooling, dies, or long setup times. Whether you’re making a prototype or ramping up to full production, laser cutting offers fast turnaround, reduced downtime, and the ability to handle short runs or custom parts just as easily as bulk orders.

Applications of Precision Laser Cutting in Sheet Metal

 Here are some key areas where laser cutting plays a critical role in sheet metal fabrication:

• Aerospace Industry
  Laser cutting is widely used in aerospace manufacturing due to its ability to handle complex, high-precision parts. Components such as turbine blades, structural frames, and panels require tight tolerances and smooth finishes, all of which are achieved with laser cutting. The method also helps reduce material waste, a crucial factor when working with expensive aerospace metals.
• Automotive Manufacturing
  In the automotive industry, laser cutting is used for both production parts and custom designs. It’s commonly employed to cut body panels, exhaust components, and brackets, offering the precision needed for parts that must fit perfectly during assembly. Laser cutting also allows for intricate designs and lightweight parts that contribute to overall vehicle efficiency.
• Electronics and Semiconductor Industries
  For producing small, delicate components in the electronics sector, laser cutting’s ability to work with thin metals and create micro-sized cuts is invaluable. It’s used for cutting intricate parts like connectors, enclosures, heat sinks, and leads. The process ensures minimal material distortion, preserving the functionality of sensitive parts.
• Construction and Architecture
  Laser cutting is also used in the construction and architectural sectors for both decorative and structural elements. Designers use it to create custom metal panels, gates, facades, and other aesthetic features. The precision of the laser allows for highly detailed patterns and intricate designs, making it a popular choice for modern architecture.
• Energy Sector
  In the energy sector, laser cutting is utilized to manufacture parts for renewable energy sources such as wind turbines and solar panels. It’s also used for precision-cutting of parts for oil and gas equipment, where high-quality, durable parts are necessary for efficiency and safety.

 High-Speed Plasma Cutting for Sheet Metal

Plasma cutting is a widely used method for cutting thick sheet metal at high speeds. It uses a high-velocity jet of ionized gas (plasma) to melt and blow away the metal at the cut site. Plasma cutting is especially effective on thicker metals, including steel, stainless steel, and aluminum, making it an ideal choice for industries that require fast, high-volume production. Unlike laser cutting, which is best for precise, thin material cuts, plasma cutting excels at cutting through thicker, more robust materials efficiently.

This method is cost-effective for large-scale projects and offers both speed and flexibility, handling a wide range of material thicknesses. While plasma cutting has its limitations, especially in terms of precision, it remains an essential tool for many fabricators due to its affordability and versatility.

The Plasma Cutting Process

The plasma cutting process involves several key steps, starting with the creation of plasma. Here’s how it works:

• Plasma Generation: An electrical arc is created between an electrode and the metal material. This arc is then passed through a nozzle, where it ionizes the gas, turning it into plasma.
• Plasma Jet Creation: The ionized gas (plasma) exits the nozzle at extremely high speeds, reaching temperatures that can exceed 30,000°F (16,650°C). The plasma jet focuses intense heat onto the metal, causing it to melt and evaporate.
• Material Removal: As the plasma jet moves along the metal surface, it simultaneously melts and blows the molten metal away from the cut, leaving a clean separation. Compressed air, nitrogen, or oxygen is often used to assist in the removal of the molten material and to help stabilize the cut.
• CNC Control: Plasma cutting is usually CNC (Computer Numerical Control)-driven, meaning the cutting path is programmed from a CAD design, allowing for high repeatability and consistent cuts across multiple parts.

Speed and Efficiency Benefits

One of the most notable advantages of plasma cutting is its speed. The high heat generated by the plasma allows it to cut through metals much faster than traditional methods like laser cutting or mechanical shearing, especially for thicker materials. Plasma cutters can cut through materials ranging from thin gauge sheets to heavy plates (up to 2 inches thick or more).

Efficiency benefits include:

• Faster Cut Times: Plasma cutting is significantly faster than other methods, reducing cycle times for parts production and helping businesses meet tight deadlines.
• Cost-Effective: Plasma cutting is less expensive to operate compared to more precise cutting methods like laser cutting, making it a more affordable option for cutting thicker metals.
• Minimal Post-Processing: Plasma cuts tend to require less post-processing than other methods, such as mechanical cutting, because the plasma stream produces relatively clean edges. However, some finishing may still be necessary for parts that require smoothness.

Limitations and How to Overcome Them

Despite its many advantages, plasma cutting comes with certain limitations, primarily related to precision and the quality of the cut. These limitations can be mitigated with the right equipment, settings, and practices:

• Precision Limitations: Plasma cutting is not as precise as laser cutting, especially on thin materials. The wider kerf (cut width) can make it harder to achieve intricate shapes or fine details. For applications requiring high precision, CNC plasma cutters with fine-tuned settings and high-quality consumables can improve accuracy. Additionally, using a plasma cutter with a smaller nozzle or higher power settings can help to produce a finer cut.
• Edge Quality: Plasma cuts may leave rougher edges or a more pronounced heat-affected zone (HAZ), especially on thicker materials. The cut may also have some dross (molten material) attached to the underside of the cut. To minimize this, ensure the plasma cutter is correctly calibrated for the material thickness and type. Post-processing methods such as grinding or sanding may also be used to smooth the edges.
• Material Thickness Limitations: Plasma cutting is best for materials with a thickness of 1/8” to 1 inch. While it can cut thicker metals, the cut quality may degrade as thickness increases. For thicker materials, consider using a multi-pass approach, where the material is cut in stages, or use advanced high-definition plasma cutting systems, which offer greater precision and efficiency on thicker sheets.
• Heat-Affected Zone (HAZ): The intense heat generated by plasma cutting can affect the surrounding area of the material, potentially weakening it or causing distortion. To reduce the heat-affected zone, use lower power settings and faster travel speeds for thinner materials. Ensuring proper cooling and material handling during and after cutting also helps maintain part integrity.

 Waterjet Cutting for Sheet Metal

Waterjet cutting is a versatile and highly effective method for cutting sheet metal, especially when precision and minimal heat distortion are required. This process uses a high-pressure stream of water, often mixed with abrasive particles, to cut through a variety of materials, including metals, plastics, ceramics, and composites. It’s particularly useful for cutting thicker or heat-sensitive materials that might be damaged by other cutting methods.

Waterjet cutting stands out for its ability to produce intricate shapes with smooth edges, all while maintaining the material’s structural integrity. It’s widely used in industries ranging from aerospace and automotive to architecture and art, where high-quality finishes and precision are critical.

The Waterjet Cutting Process

The waterjet cutting process involves several key steps to ensure precision and efficiency:

• High-Pressure Water Generation: The process begins with a pump that generates extremely high-pressure water, typically reaching up to 60,000 psi (pounds per square inch). This pressurized water is then directed through a nozzle that focuses it into a fine, high-speed stream.
• Cutting Action: The high-pressure water stream is directed at the material to be cut. For tougher metals, an abrasive material, such as garnet, is mixed with the water to increase the cutting power. The abrasive particles help the water stream to erode and cut through the metal by scraping away small particles.
• CNC Control: Like other cutting methods, waterjet cutting is often controlled through CNC (Computer Numerical Control) technology, which ensures the cutting path is accurate and follows the precise dimensions of the design. The CNC system allows for intricate patterns, sharp corners, and detailed cuts, all of which can be replicated consistently.
• No Heat Affected Zone (HAZ): Since waterjet cutting doesn’t generate heat, there’s no heat-affected zone (HAZ) that could distort or weaken the material. This makes it an ideal choice for cutting materials that are sensitive to temperature changes, such as alloys and plastics.

Advantages of Waterjet Cutting

Waterjet cutting offers several benefits that make it a preferred method for certain sheet metal applications:

• No Heat Distortion: One of the biggest advantages of waterjet cutting is that it’s a cold cutting process. Because it doesn’t introduce heat into the material, there is no risk of warping, hardening, or weakening of the metal. This makes it ideal for materials that are sensitive to heat, such as aluminum, titanium, and stainless steel.
  High Precision and Fine Detail: Waterjet cutting produces highly accurate and intricate cuts, with tolerances as tight as ±0.005 inches. This precision is ideal for creating detailed designs or tight-fitting parts. The cutting edge is smooth and burr-free, which often eliminates the need for additional finishing.
  Ability to Cut Thick Materials: Waterjet cutting can easily handle thicker materials, often cutting through metals that are up to 8 inches thick or more, depending on the type of material and equipment used. This makes it a versatile option for industries that require heavy-duty cutting, such as aerospace and heavy machinery.
  Minimal Post-Processing: Due to the clean and precise cuts produced by waterjet cutting, there’s typically little to no need for post-processing. The lack of heat-affected zones also means there are fewer issues with material hardness or deformation, reducing the need for further treatments.
  Environmental Benefits: Waterjet cutting uses water as the primary cutting medium, making it an environmentally friendly option. The process produces minimal waste, and the water can be recycled and reused, reducing its environmental footprint. Additionally, since it doesn’t produce toxic gases or fumes, it is a safer choice compared to methods like laser or plasma cutting.

Limitations of Waterjet Cutting

While waterjet cutting is highly versatile, it does have some limitations to consider:

• Slower Cutting Speed: Compared to methods like laser or plasma cutting, waterjet cutting can be slower, particularly on thin materials. This slower speed can increase production times, making it less ideal for high-volume, fast-paced operations.

• Higher Operational Costs: Waterjet cutting machines are typically more expensive to purchase and maintain than other cutting systems. The high-pressure pumps and abrasives required for the process add to the cost. Additionally, waterjet cutting requires more maintenance, such as replacing the nozzles and dealing with the disposal or recycling of used abrasives.

• Limited Cutting Width (Kerf): While the waterjet produces clean cuts, the width of the cut (kerf) can be larger than that of laser cutting. This means there’s more material lost during the cutting process, which can be a factor in certain high-precision applications.

• Abrasive Wear: The abrasive particles used in waterjet cutting can cause wear on the equipment, particularly the nozzle and mixing tube. Regular maintenance and replacement of these components are necessary to ensure consistent performance.

Conclusion

Advanced sheet metal cutting methods like laser cutting, plasma cutting, and waterjet cutting each offer unique benefits. Laser cutting excels in precision for intricate designs on thin materials. Plasma cutting is faster and more cost-effective for thicker metals but lacks the fine precision of lasers. Waterjet cutting is ideal for heat-sensitive materials and offers clean cuts without distortion, though it’s slower.

Choosing the right method depends on the material, thickness, and precision needed. Each technology provides effective solutions for different fabrication needs, ensuring high-quality, efficient results. So, if you’re searching for sheet metal fabricators near me, chances are the shop uses one or more of these advanced cutting techniques. They help deliver tight tolerances, clean edges, and reduced waste, while also speeding up production.
